Equipment and accessories

Standard features and applications

for the highest demands

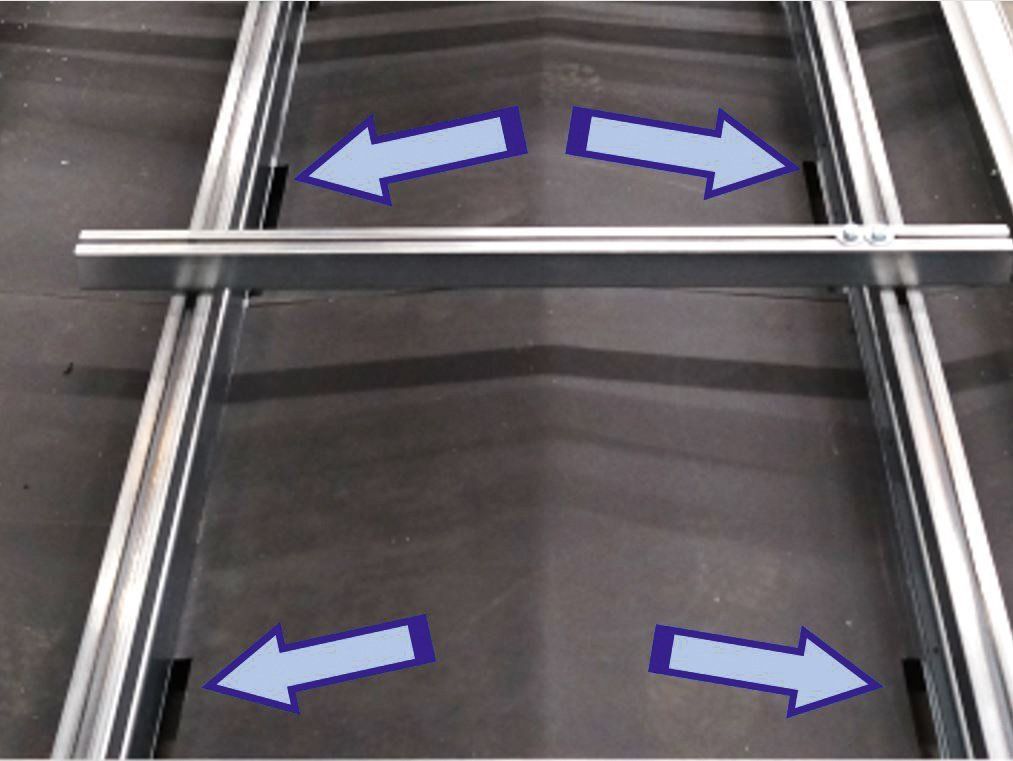

Innovative „split-bottom“/drain pan

Through the new split-bottom with slit-shaped gutters, the quick drainage of rain and defrost water is enabled. An electric heating system for the complete bottom area as antifreeze prevention is no longer necessary. This reduces the annual electrical energy consumption of the system a lot and also the risk of a blocked drain pipe is avoided by the slit shaped gutters. In the case of pure heatpump operation, the installer can buildin or even retrofit a self-regulating heating cable just along the slit-shaped gutters. The split-bottom is installed in the housing types KV and KH as standard without surcharge.

Damping pads

To dampen and prevent the transmission of vibrations and structure-borne noise from the built-in air conditioner to the acoustic housing, special damping pads made of Sylomer are pre-assembled as standard (without surcharge) on the carrier steel-profile rails ex works.

Additional applications

Adaptable and flexible for all projects

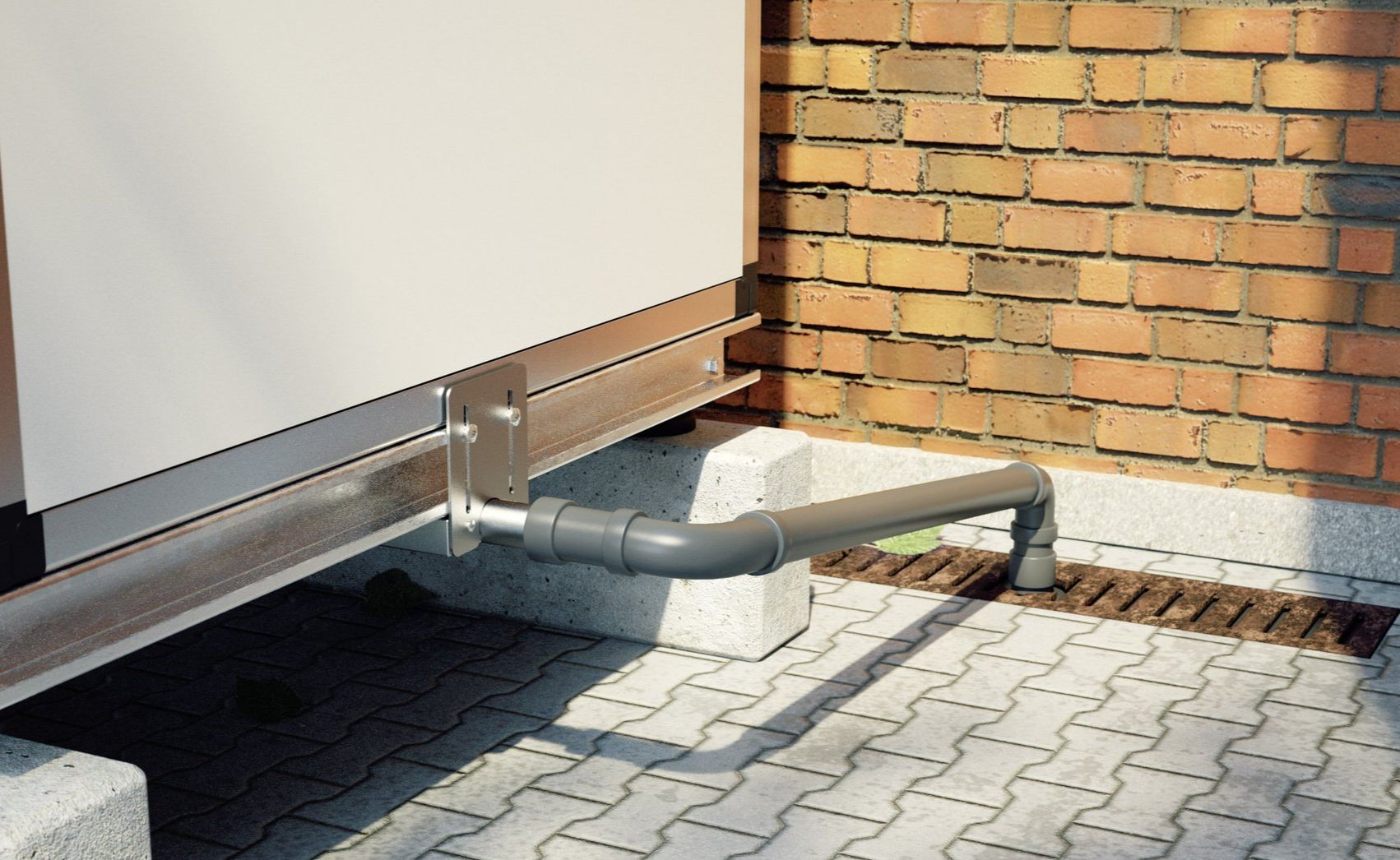

Drain collectors

Collecting the drain and rainwater under the split-bottom of the housing and drain the water to the side for a connection to a separate drainage or sewage or into an oil-separator. This keeps the surface underneath the housing dry and always ice free in winter for adjacent paths and open spaces. Extra charge, retrofitting possible.

Door fixation

fixes the front doors, even in strong wind loads against slamming and allows secure access for maintenance and repair work. For all KV-housings as standard ex works.

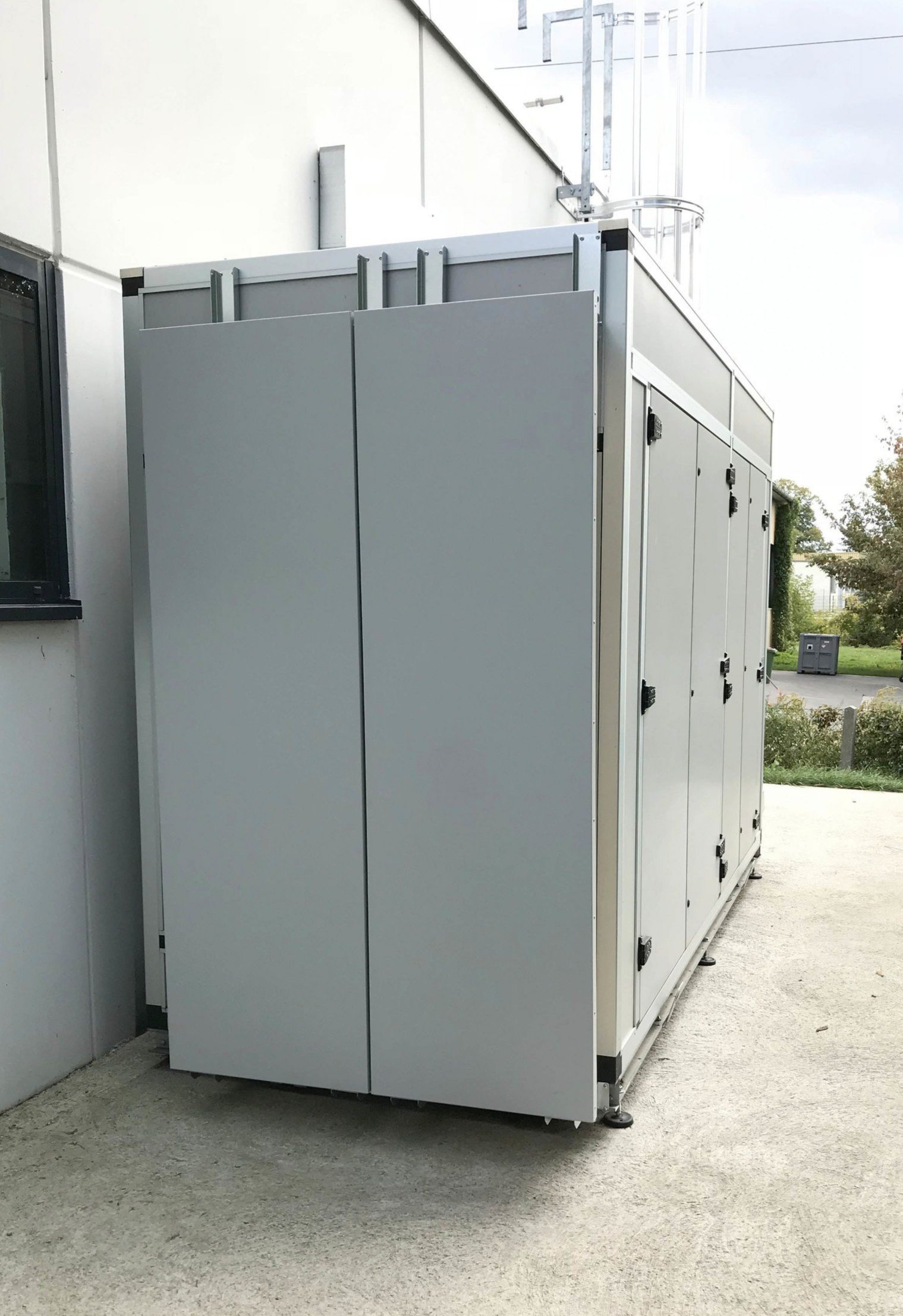

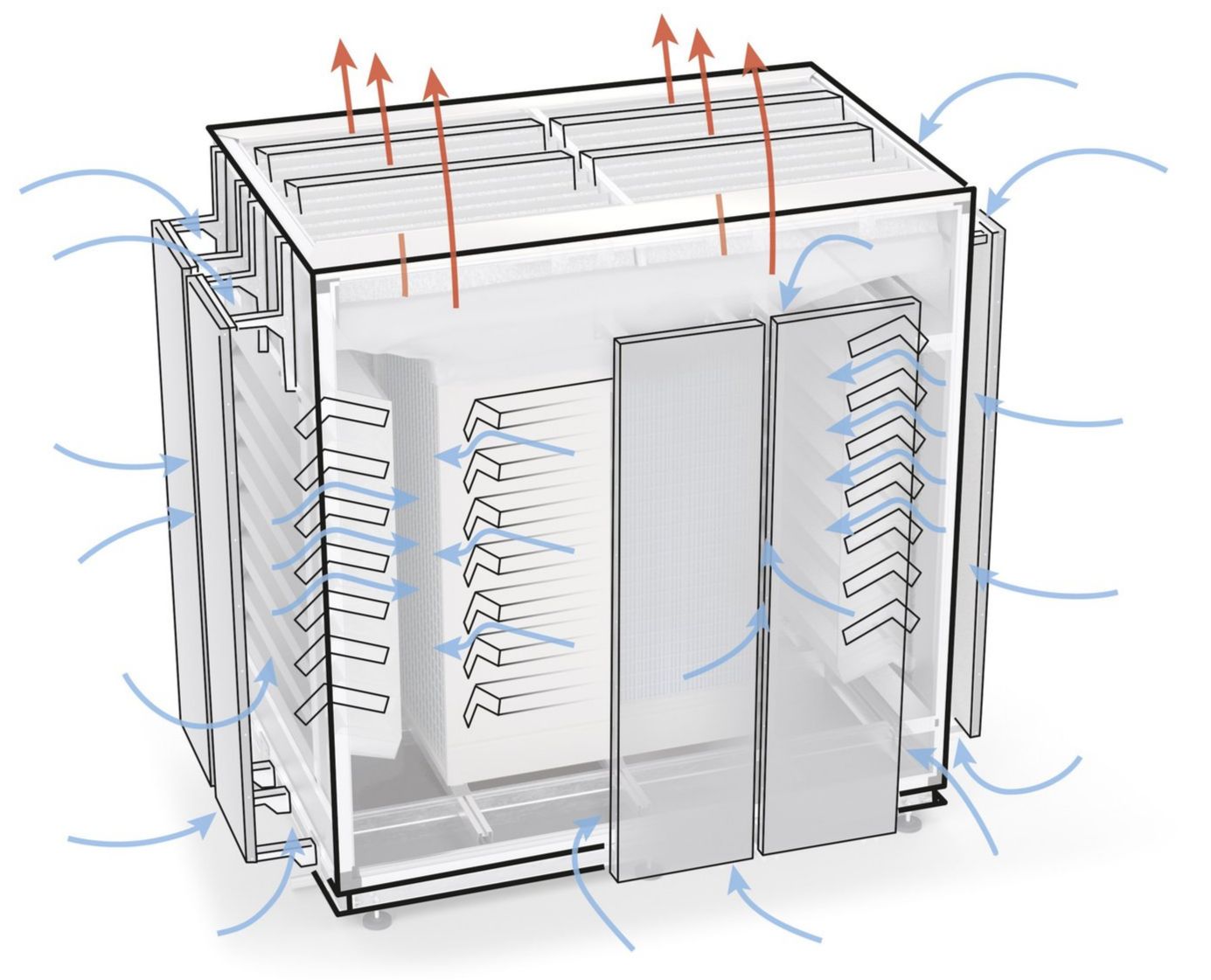

If an even higher sound attenuation is required, the newly designed and patented „deflector plates“ can further improve the insertion loss by an additional damping of approx.

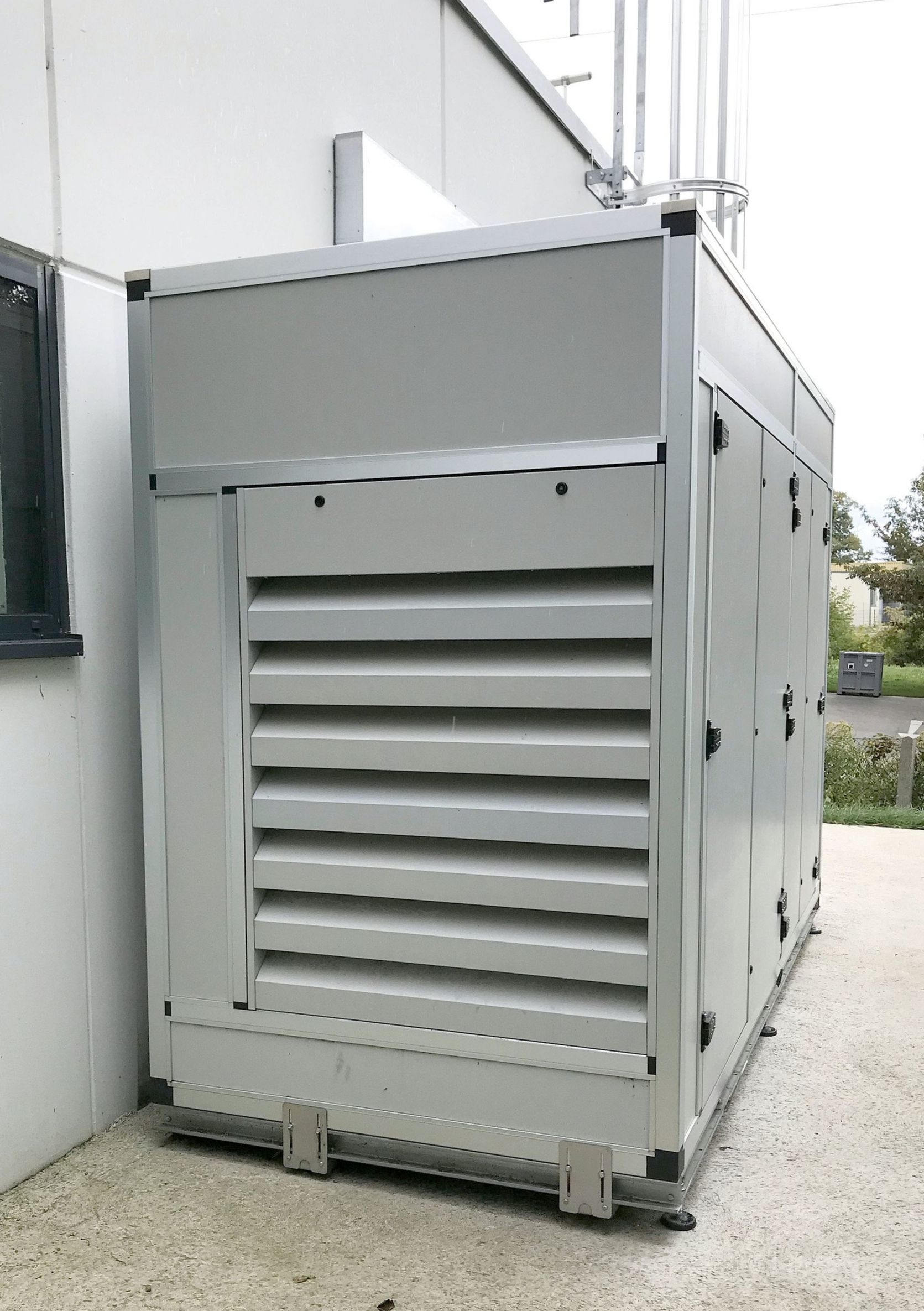

-4 dB(A)on the horizontal axis. These deflector plates are mounted by means of special brackets at a defined distance in front of the intake louvres (right, left and rear side) on the housing and attenuate specifically and effectively the sound emission of the compressors.

These plates can be ordered as additional kits and can also be retrofitted to existing acoustic housings

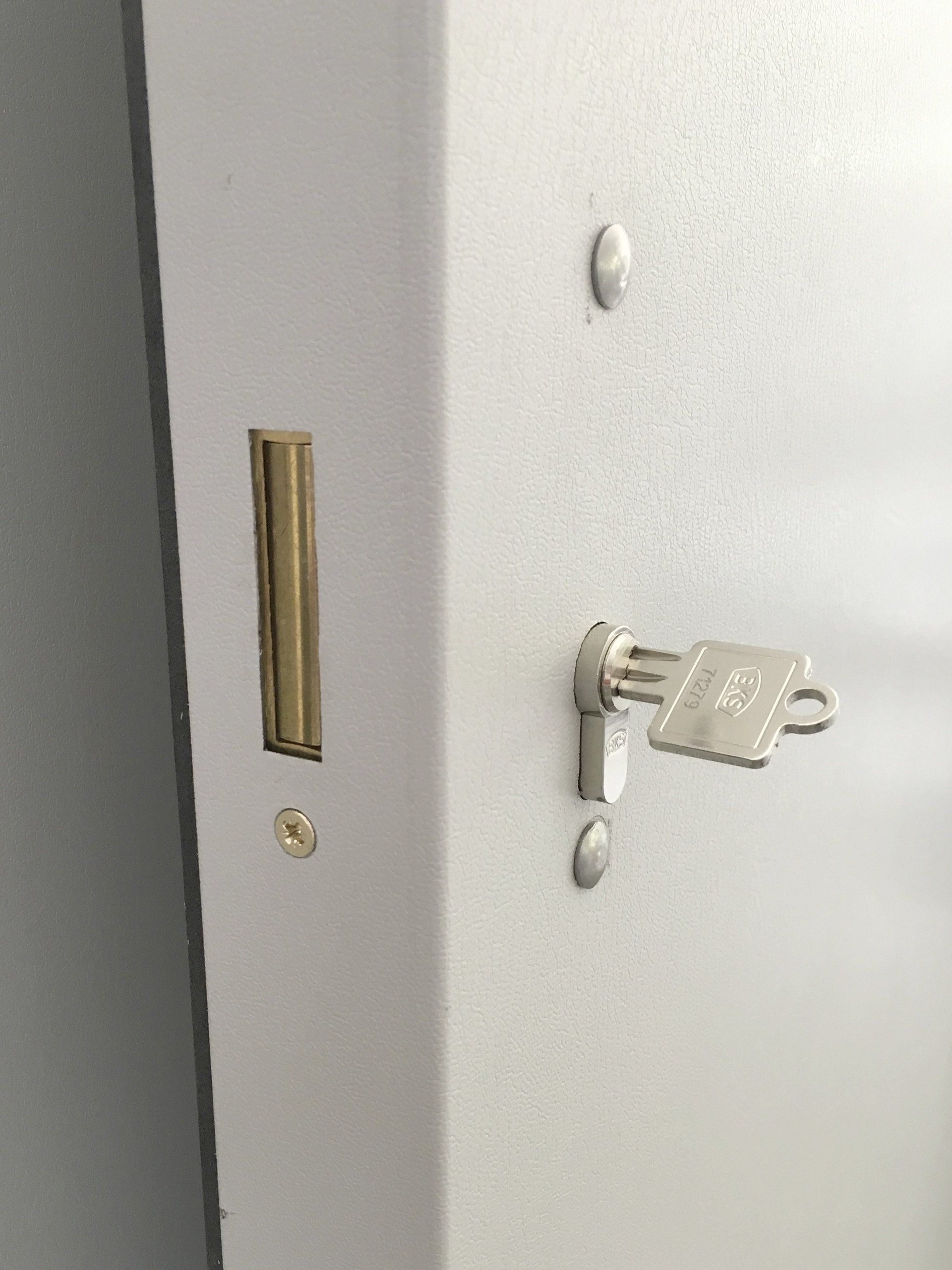

For a surcharge, a lock case is integrated in the right-hand door leaf and prepared for on-site installation of a half-cylinder lock. Property managers and retail stores can thus access via a central locking system and effectively prevent unauthorized access to the built-in devices and avoid damaged from vandalism.

City skyline

Photo By: John Doe
Button
Birthday Sparks

Photo By: John Doe
Button

Standard version in galvanized sheet steel or with PVC film coating for a small surcharge. The foil coating improves the weather resistance further and gives a “softer” appearance.

PVC-foil coating on stock:
