Concept & Application
The product series

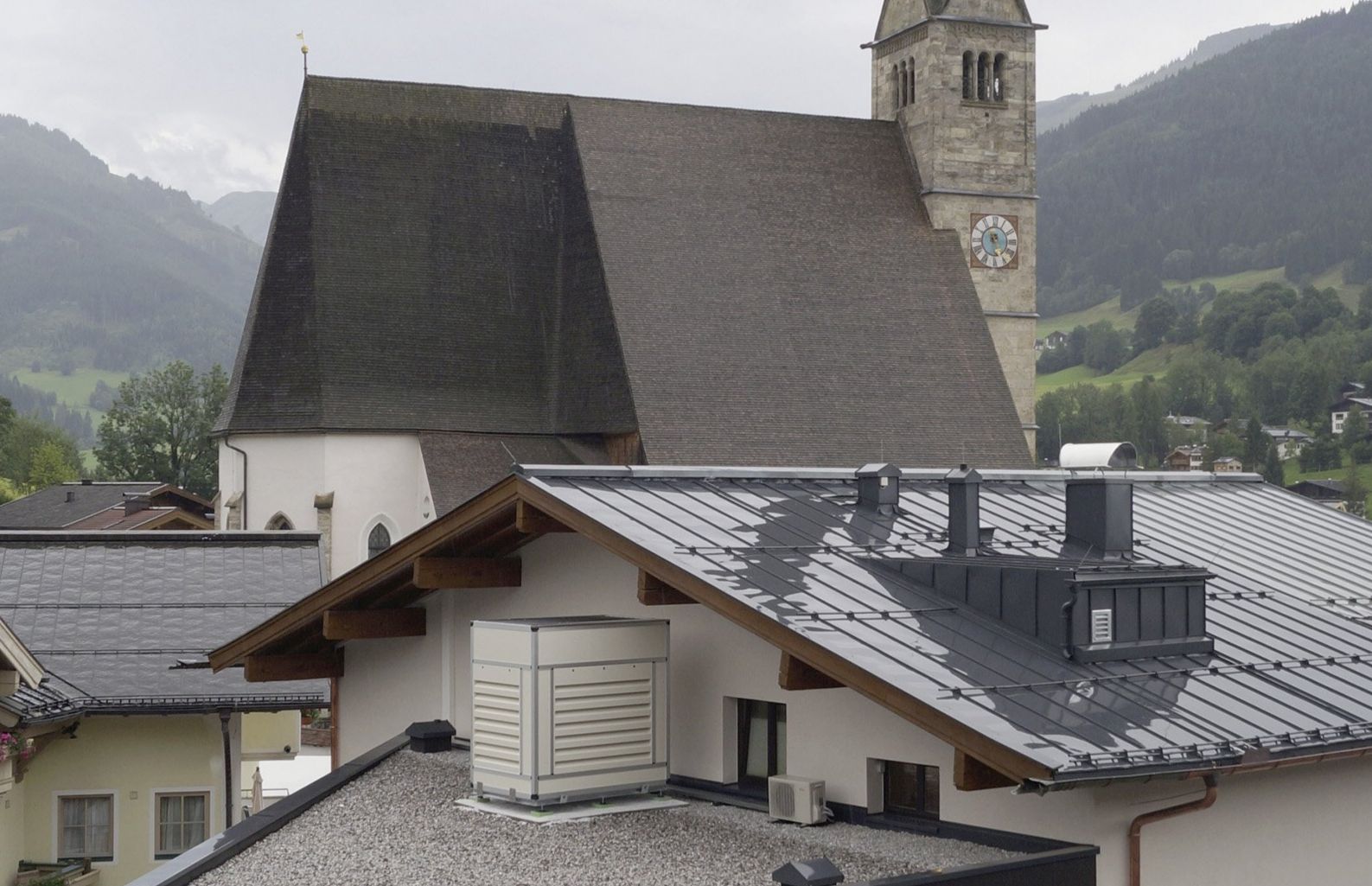

The Kellner-acoustic housing is a frequently installed and successful solution for the sound damping of units like and reduces noise emissions for neighbours and residents to a barely audible level.
  • VRF / VRV air conditioning units
  • Chillers
  • Split-air conditioners
  • Heat pumps
  • Refrigeration condensing units
  • Refrigeration compressor racks
Kellner KV
for outdoor units with
vertical air discharge
Kellner KH
for outdoor units with
horizontal air discharge
Kellner KG
enclosed with exhaust ventilation
for compressor racks

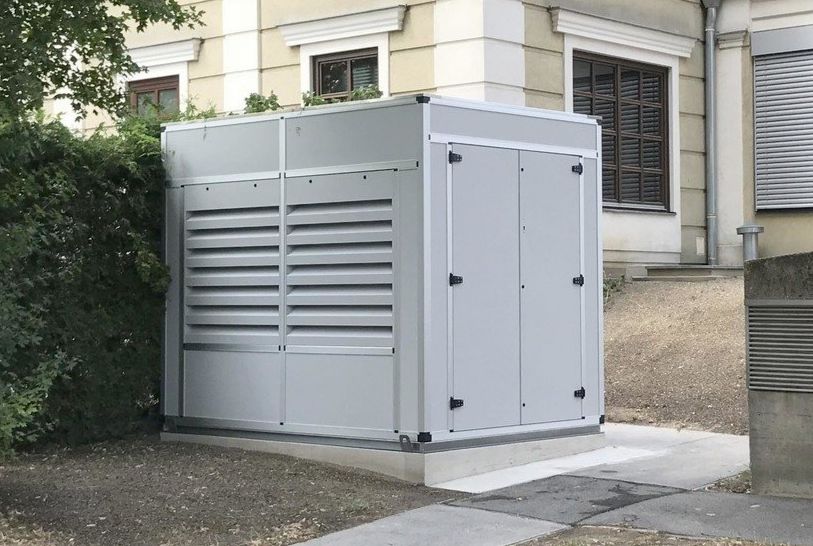

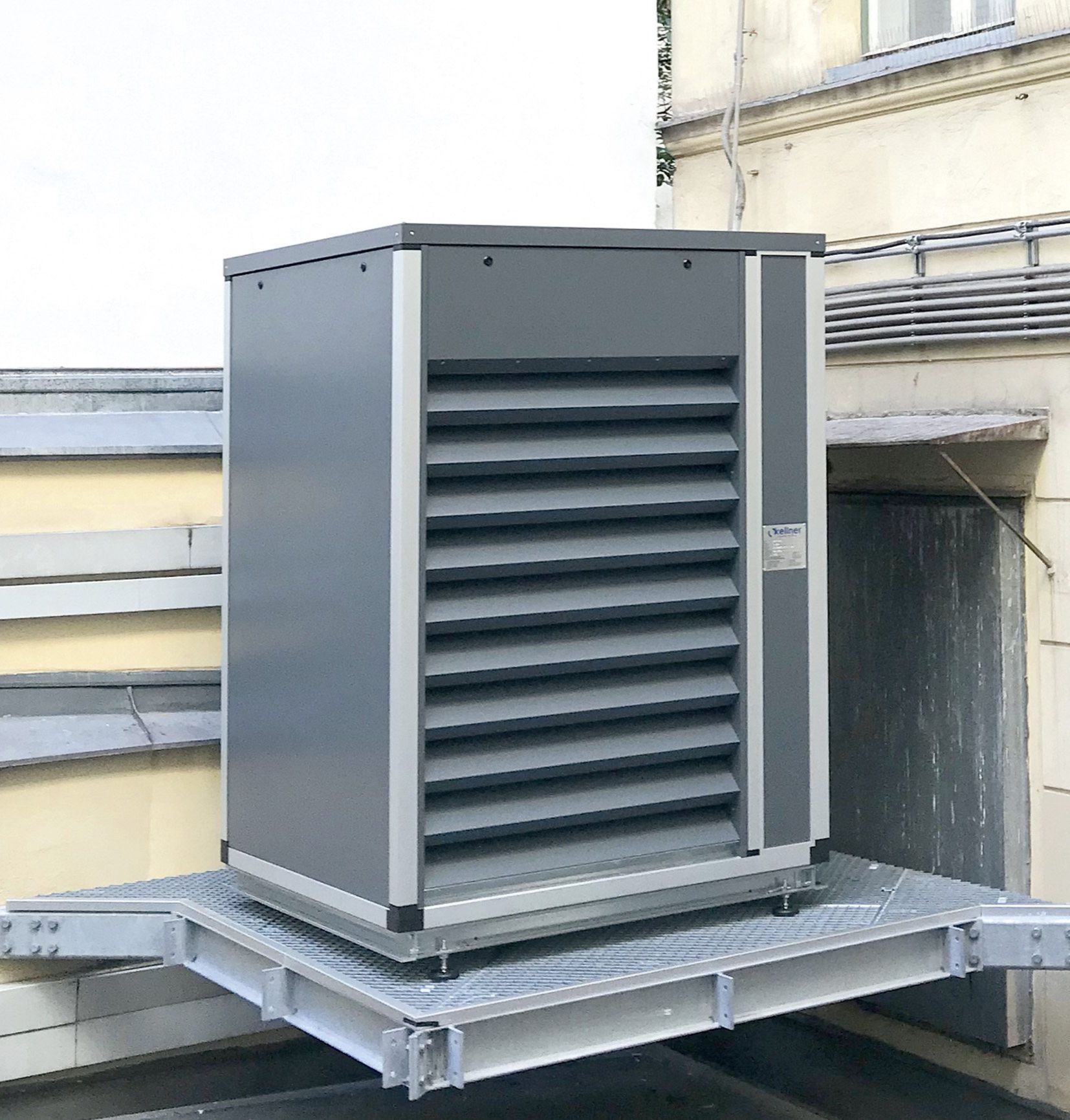

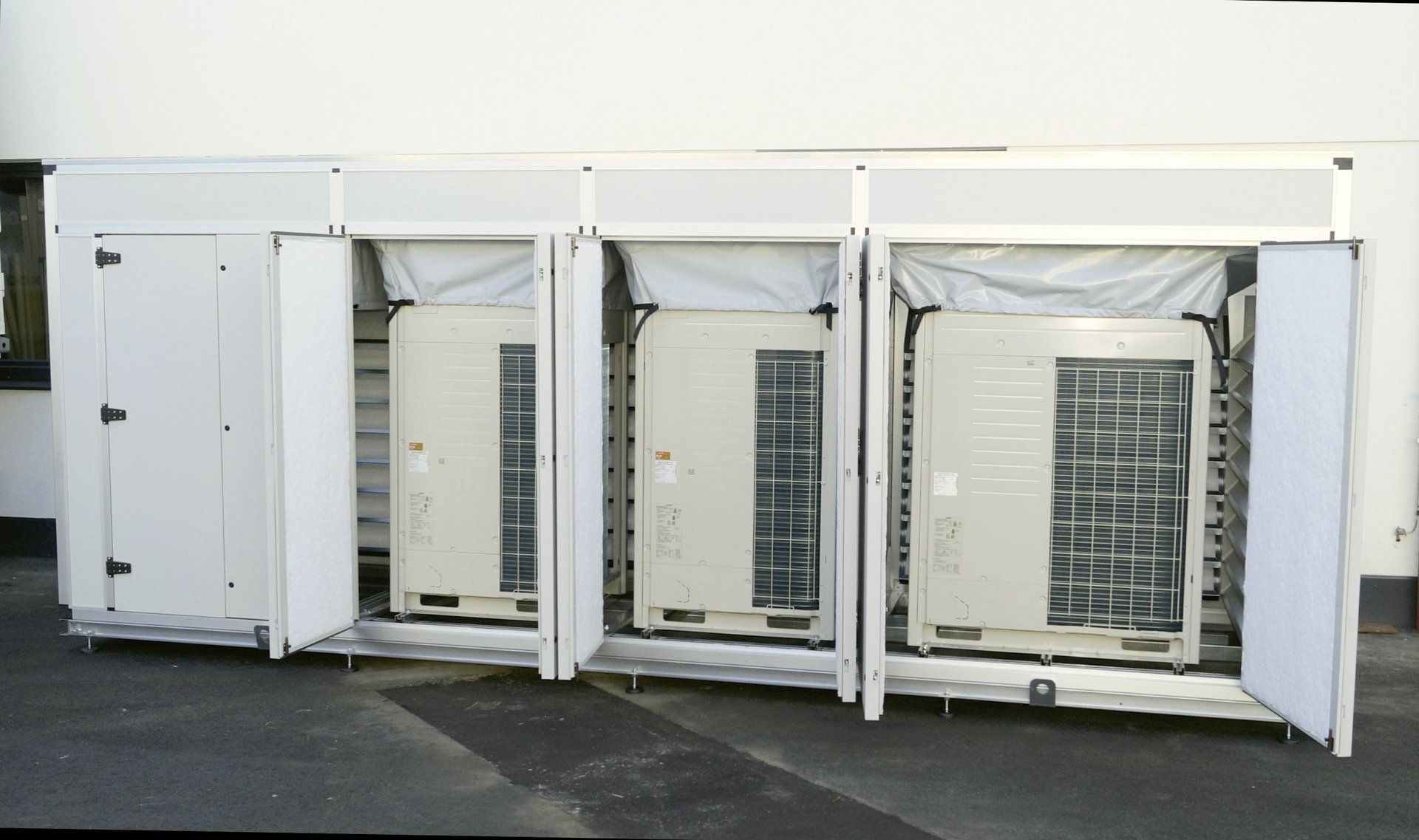

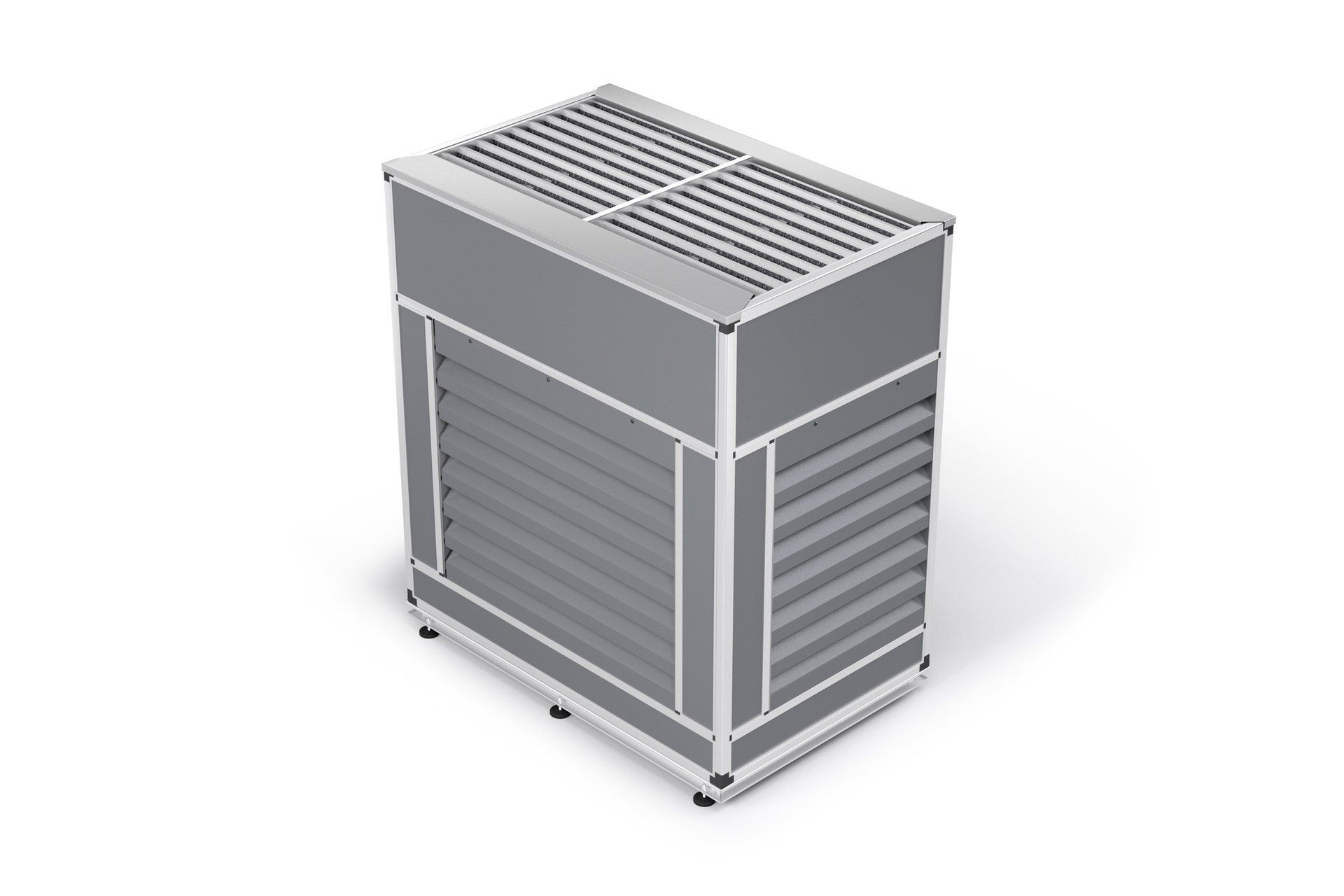

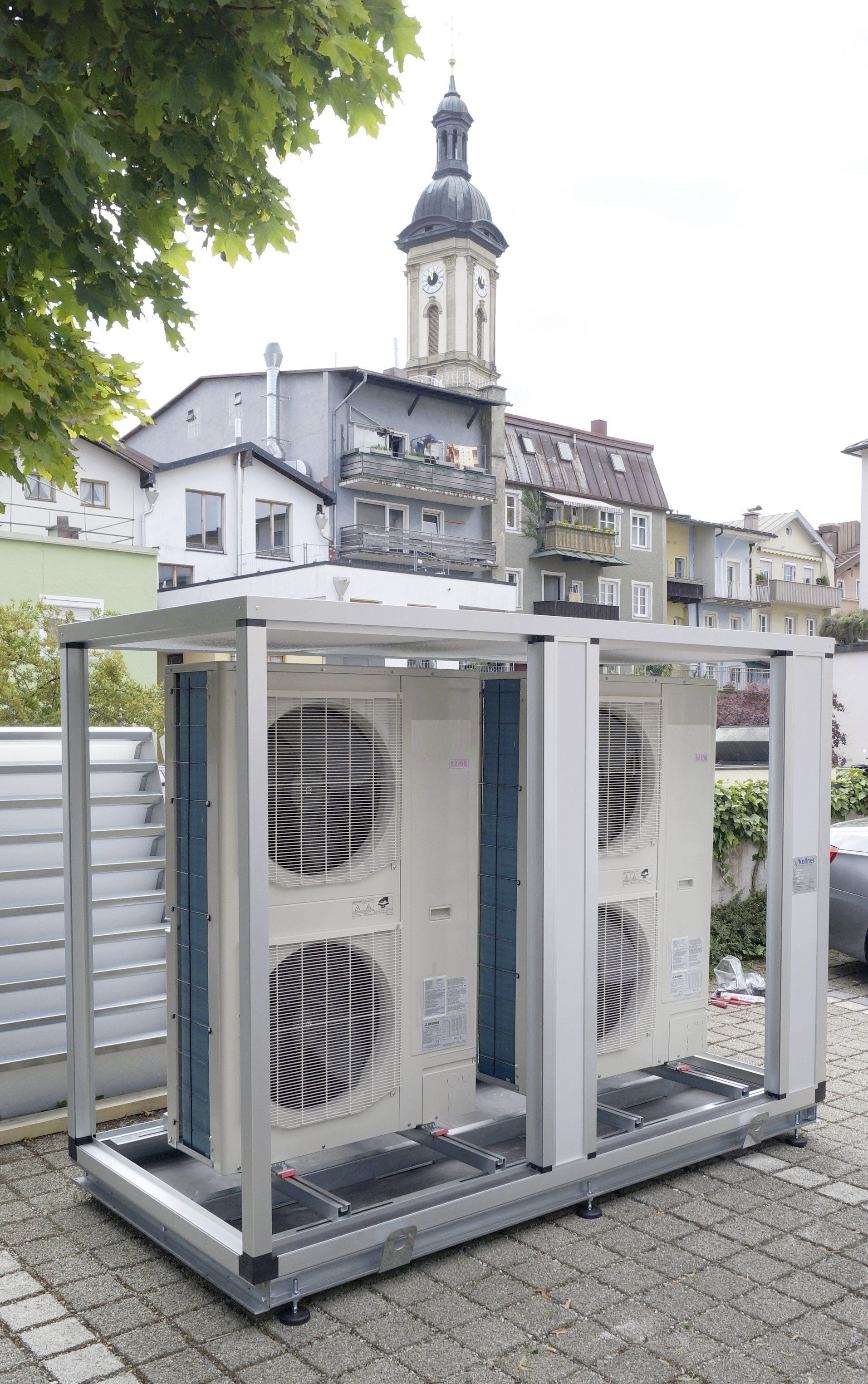

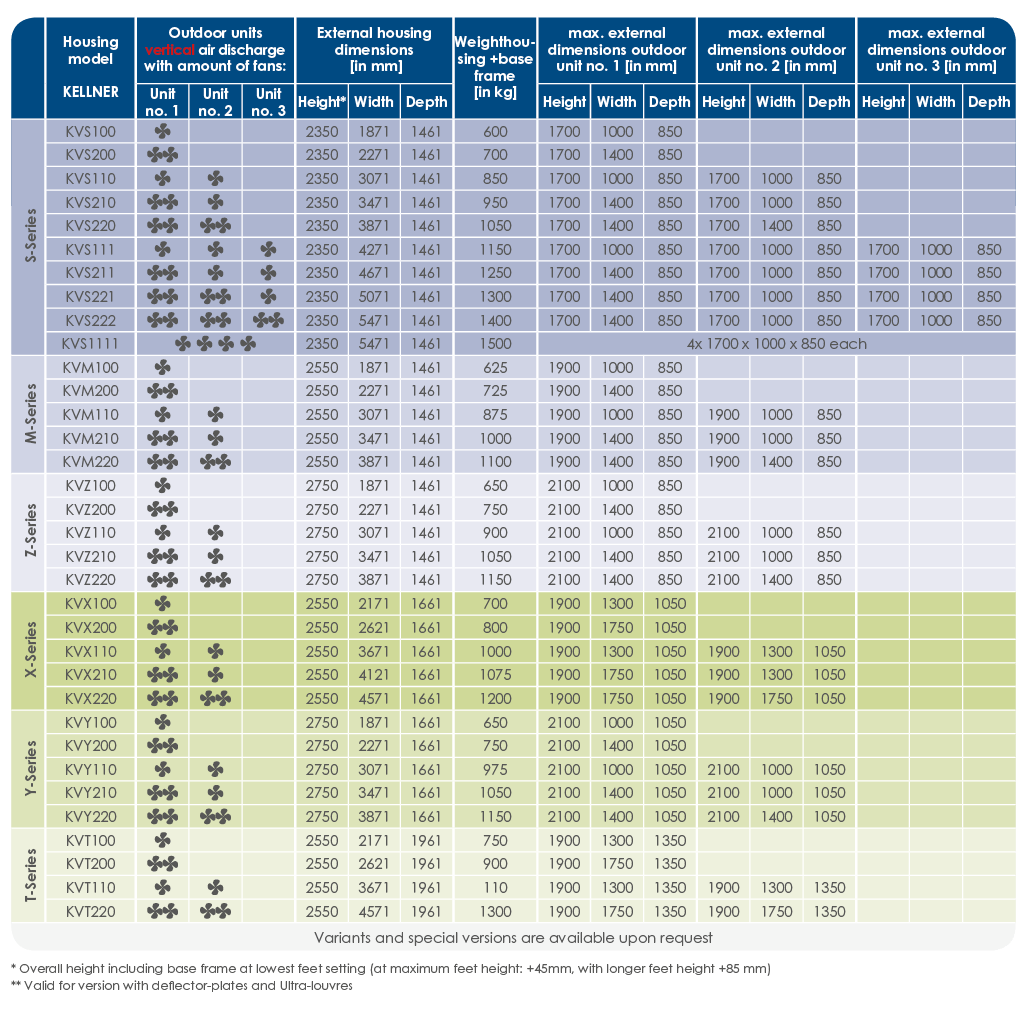

Kellner KV
for VRF / VRV air conditioning units with vertical air discharge

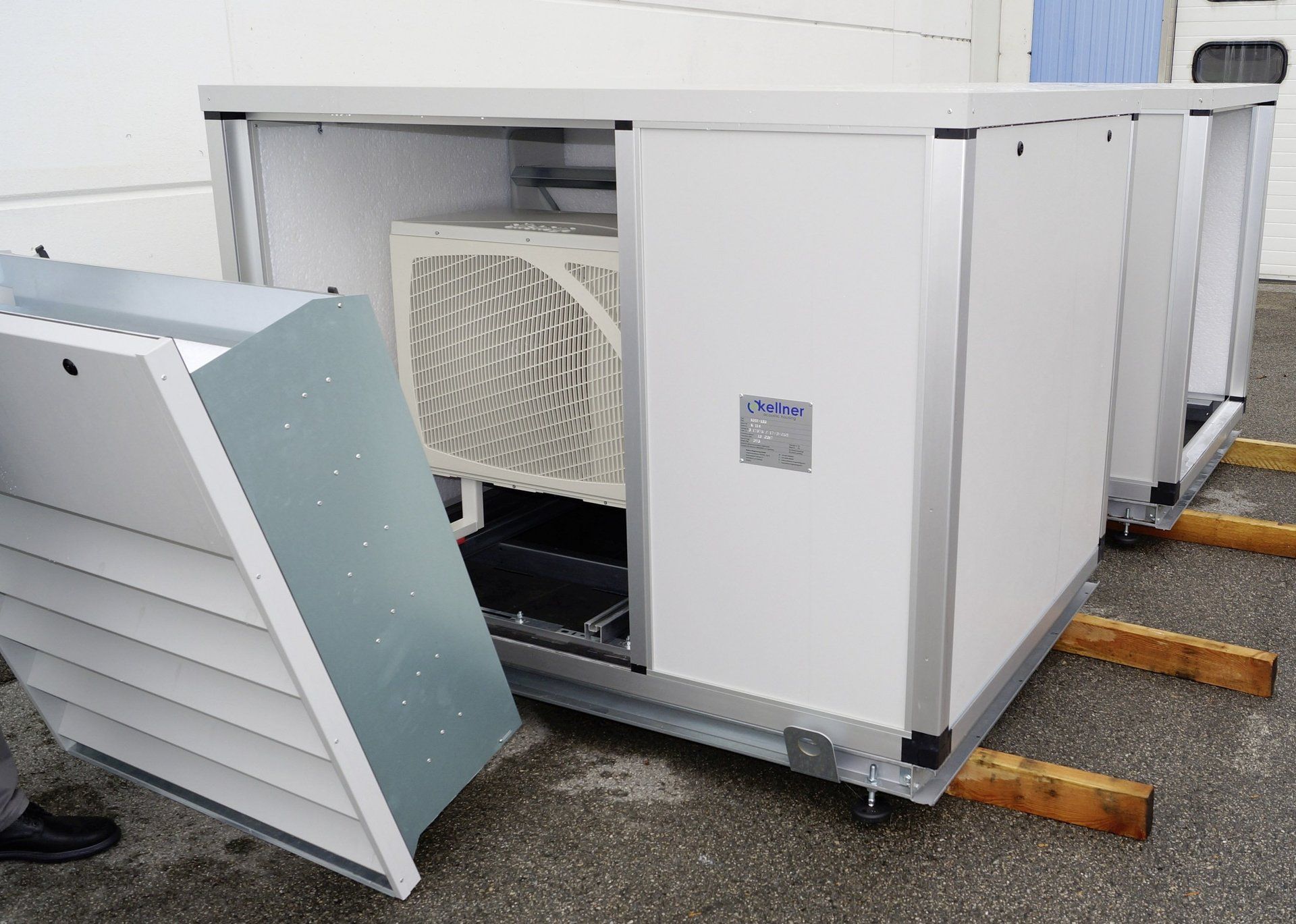

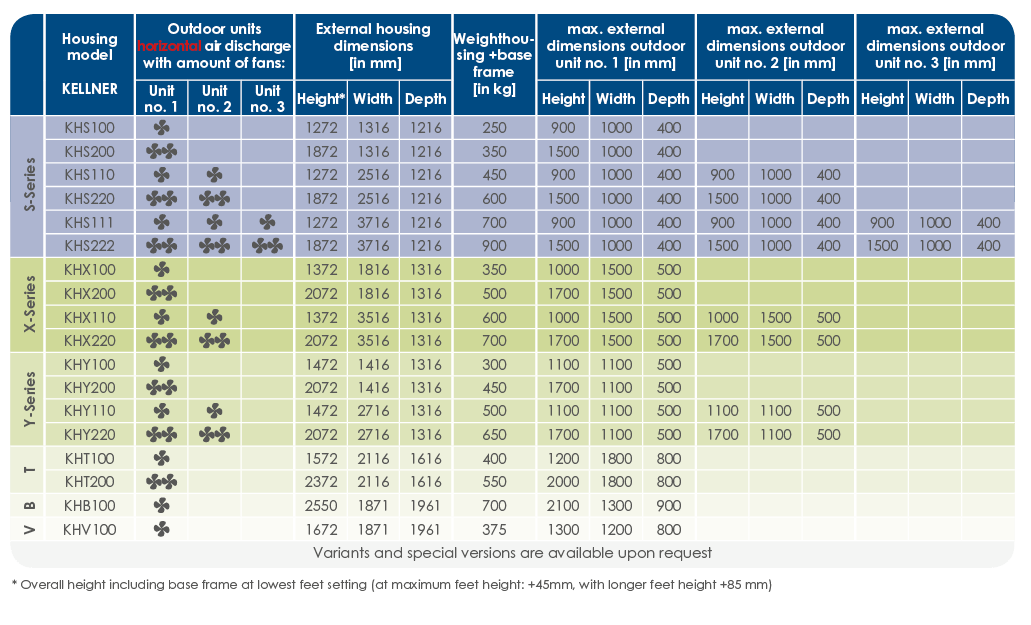

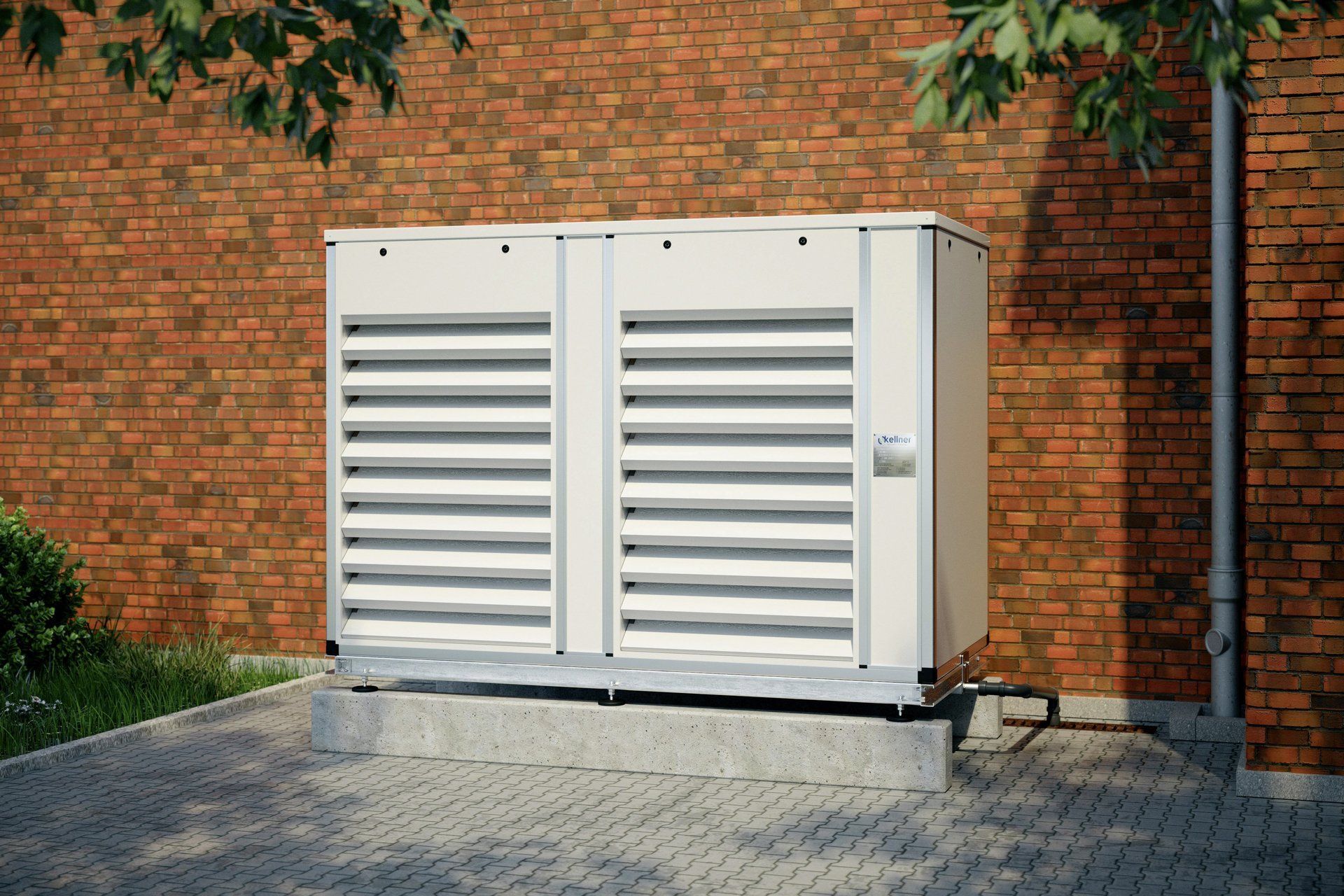

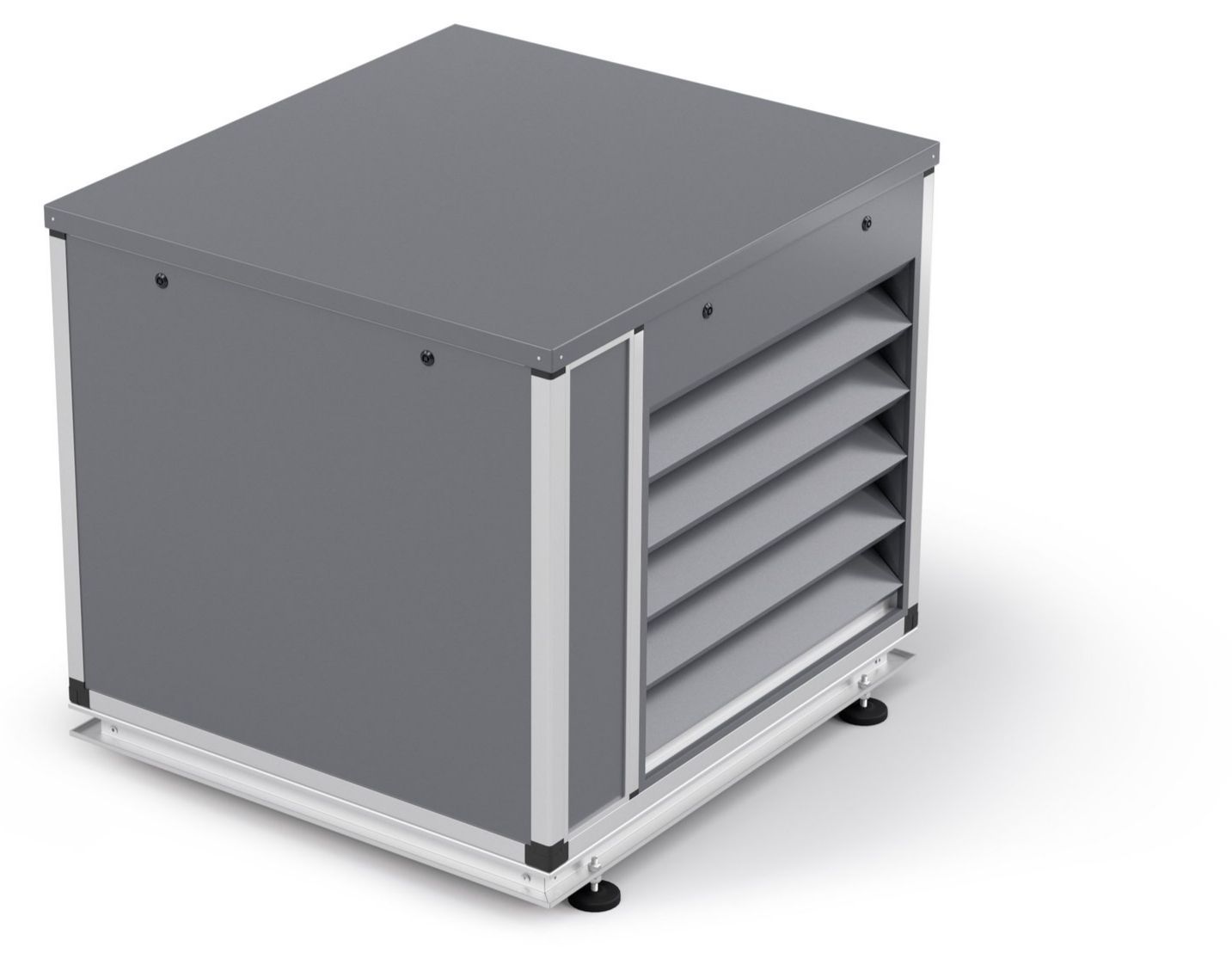

Kellner KH
for Split air-conditioners and heat pumps with horizontal air discharge

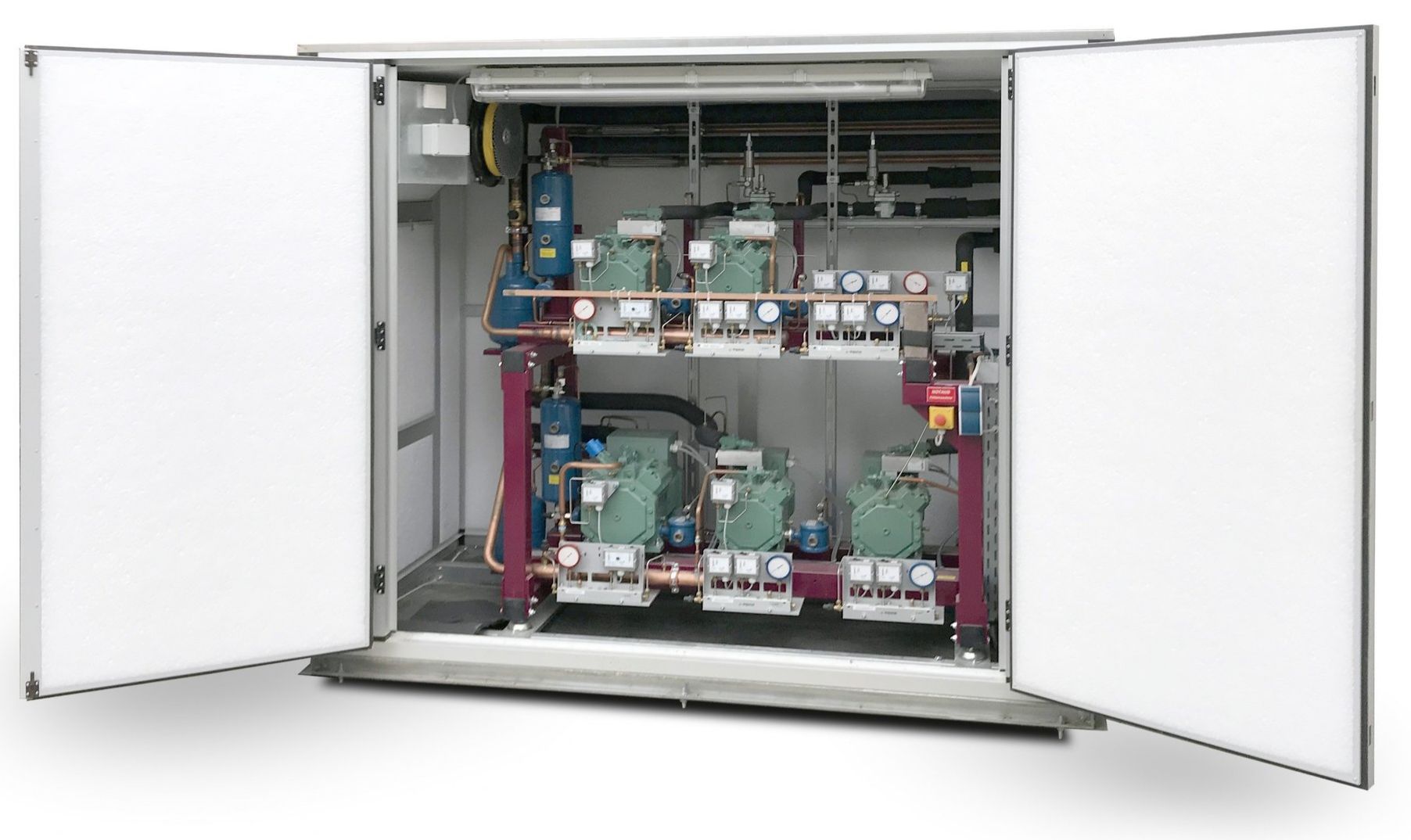

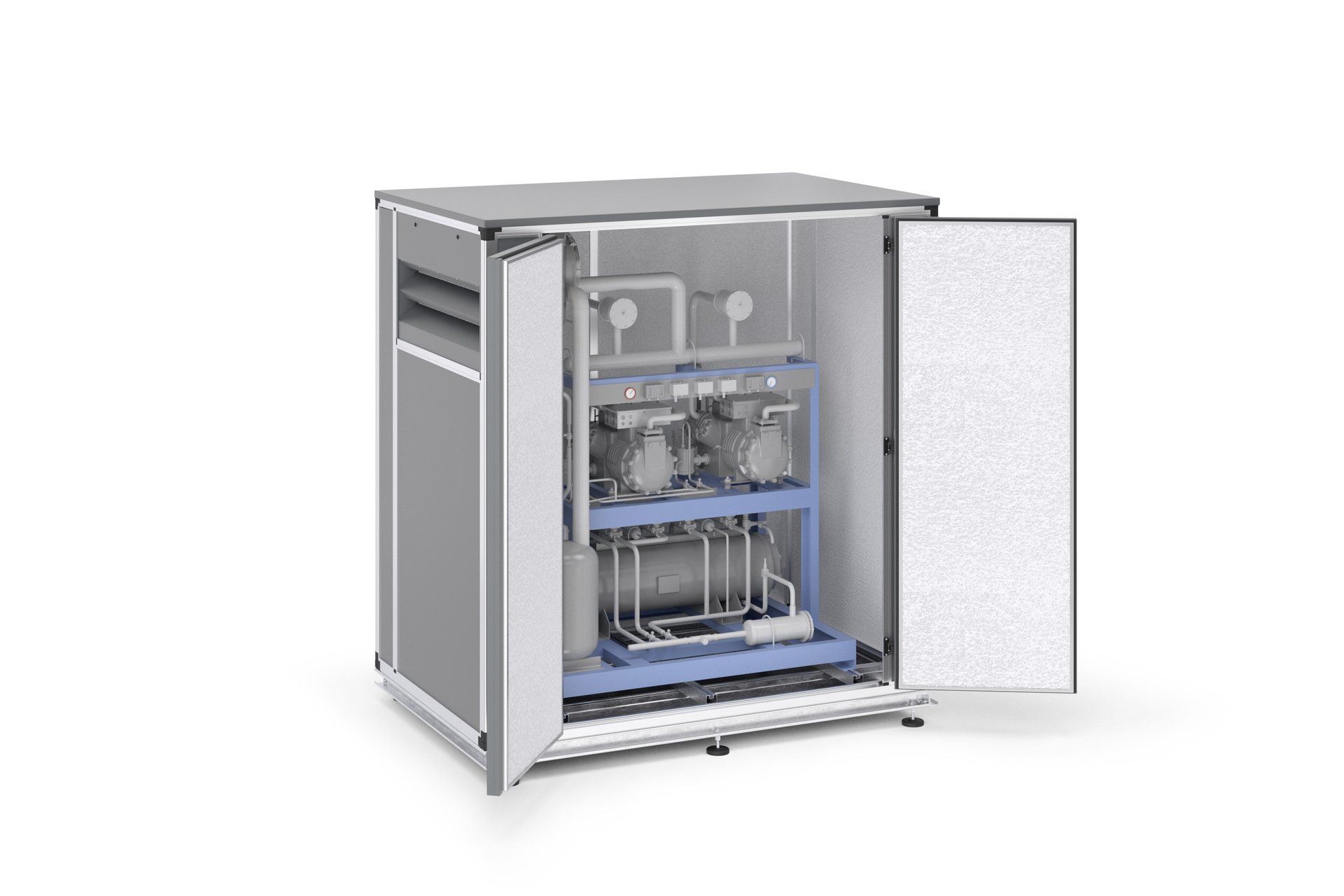

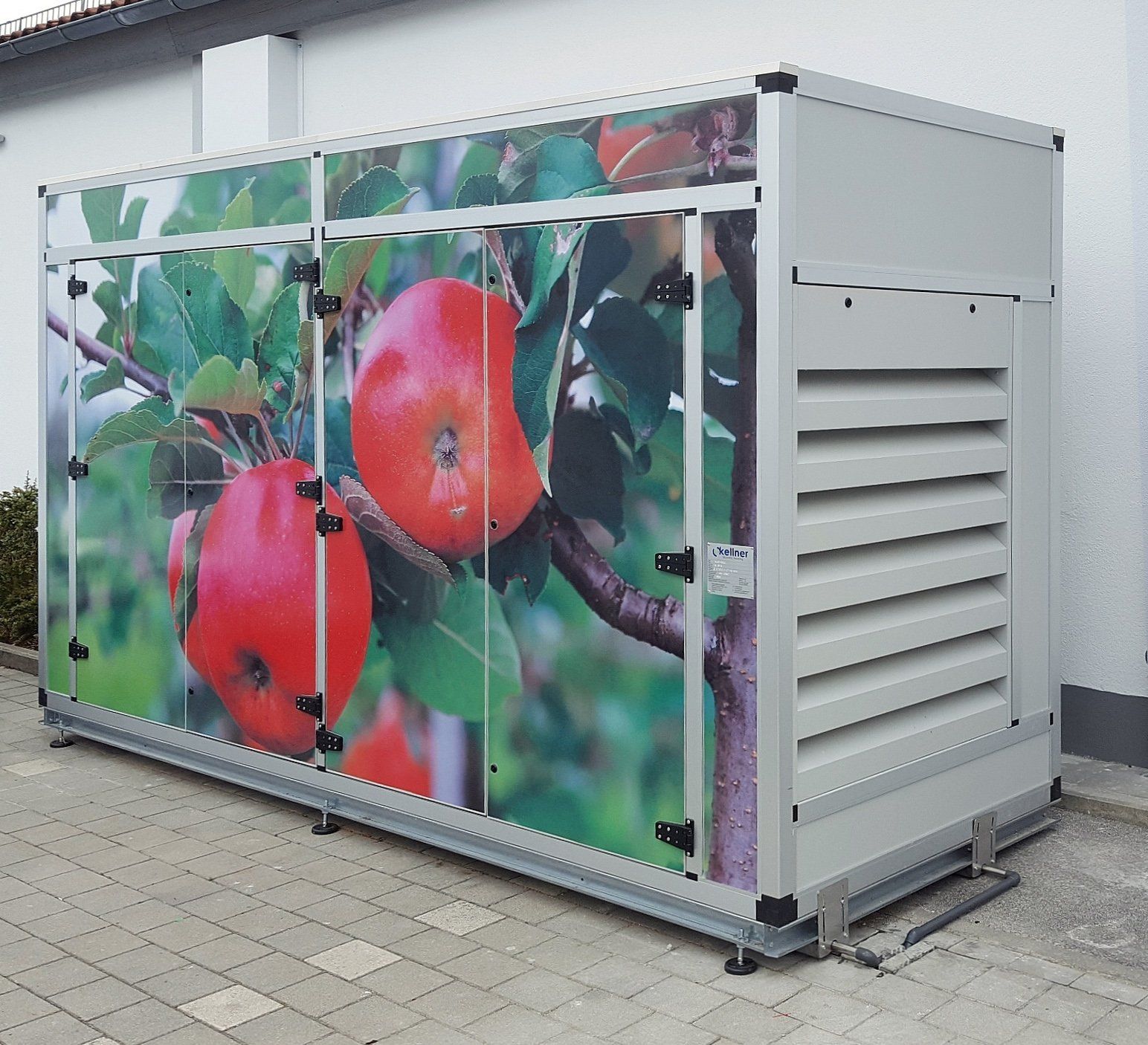

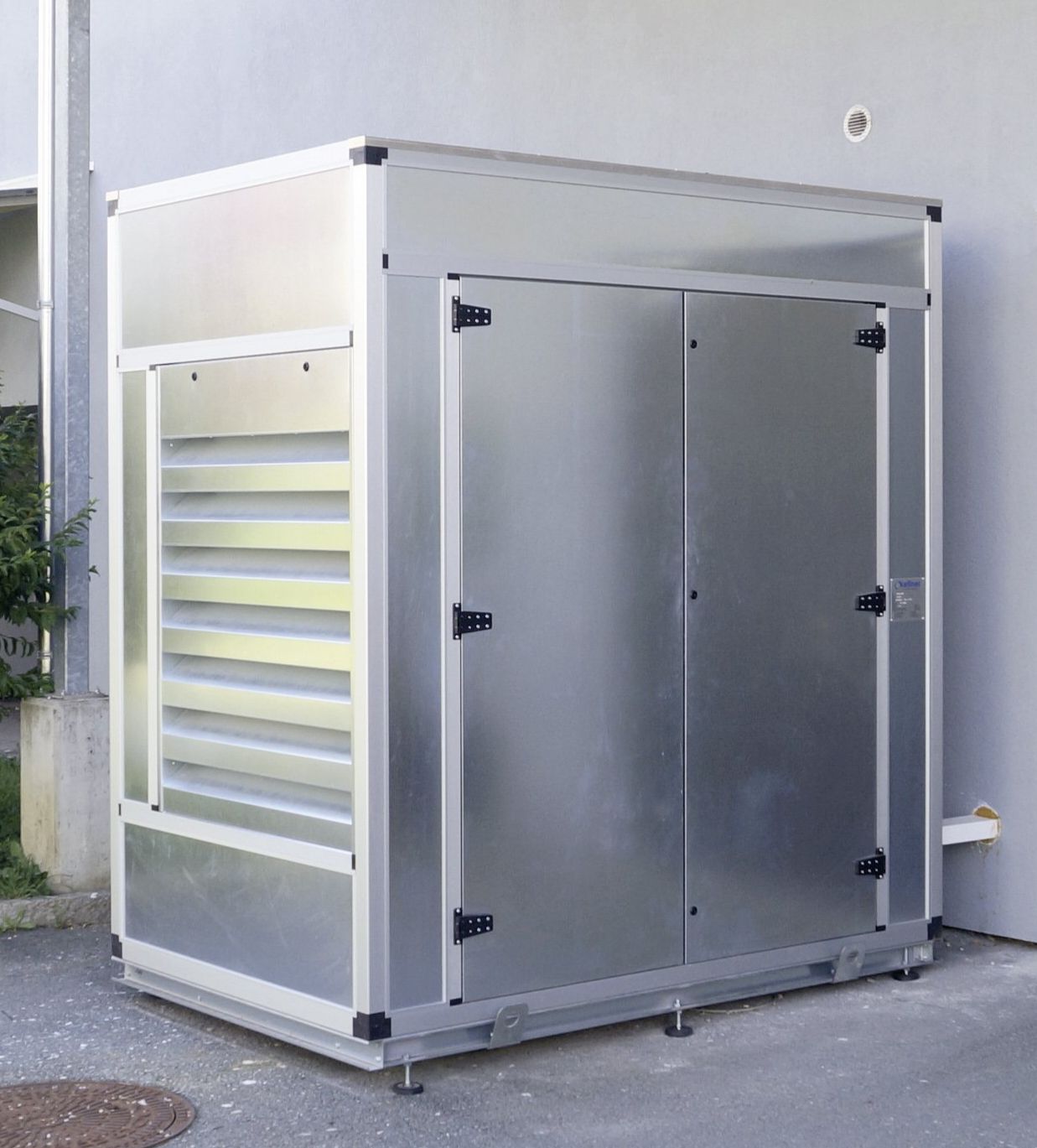

Kellner KG
for refrigeration compressor racks

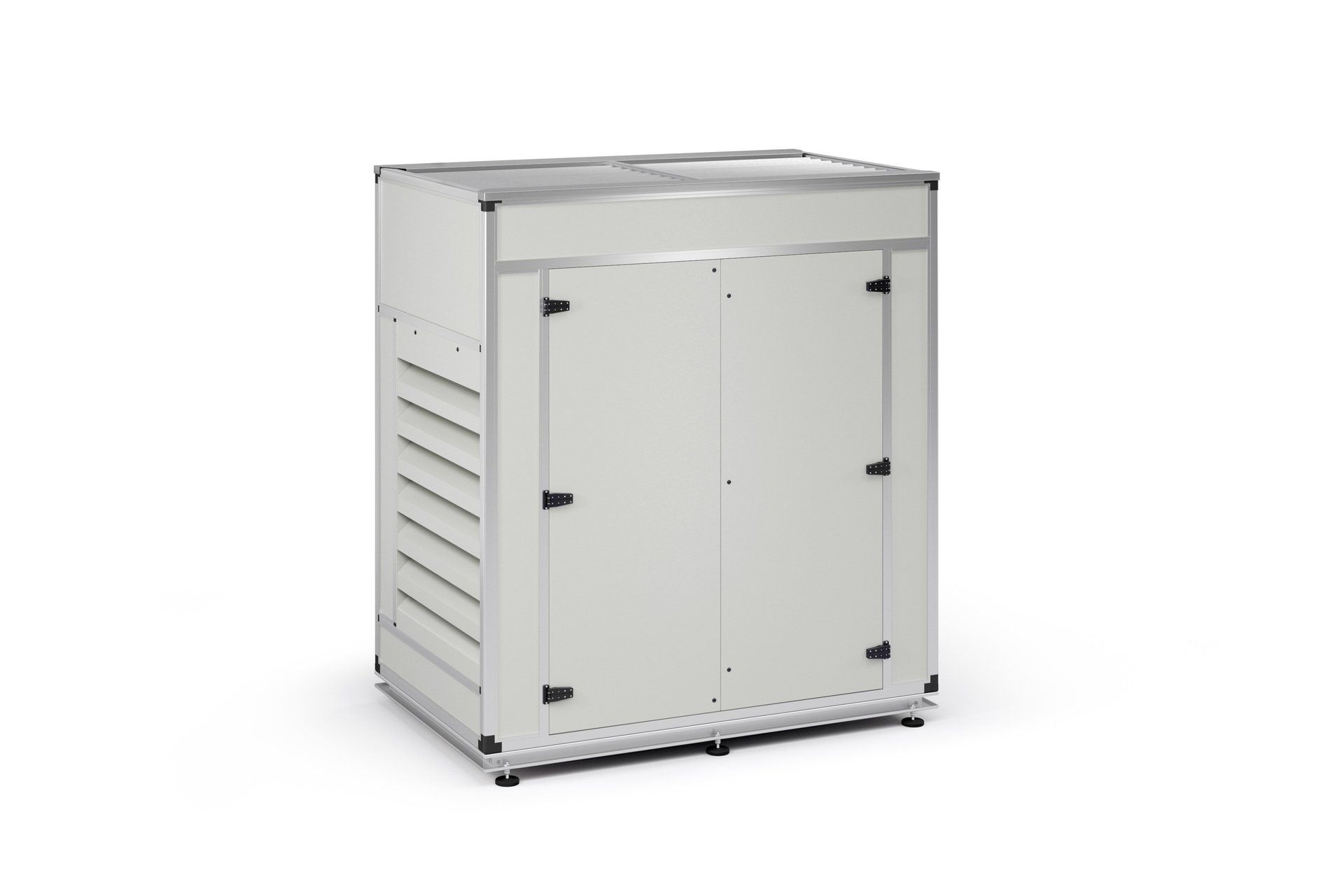

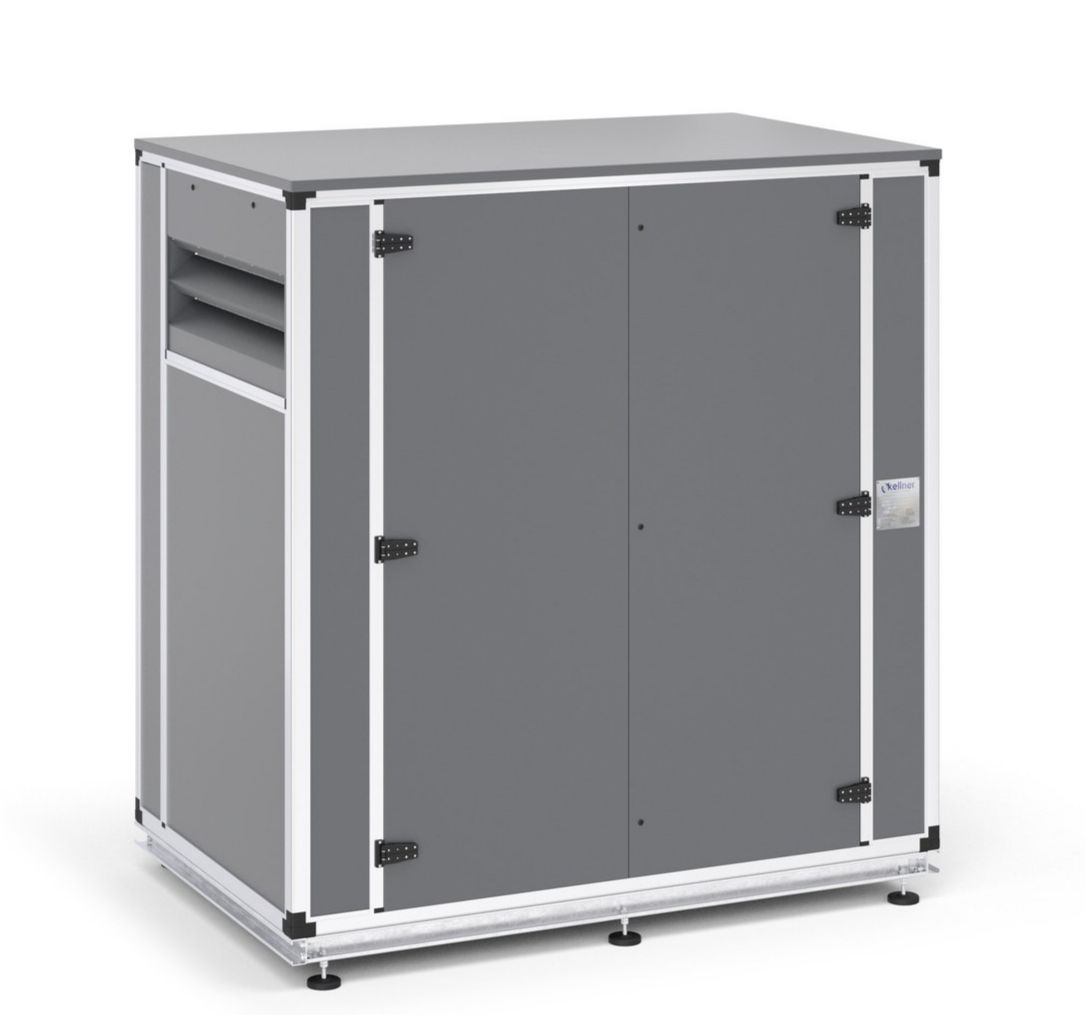

Acoustic housing in closed design
designed for the requirements of outdoor in-stallation of a refrigeration system

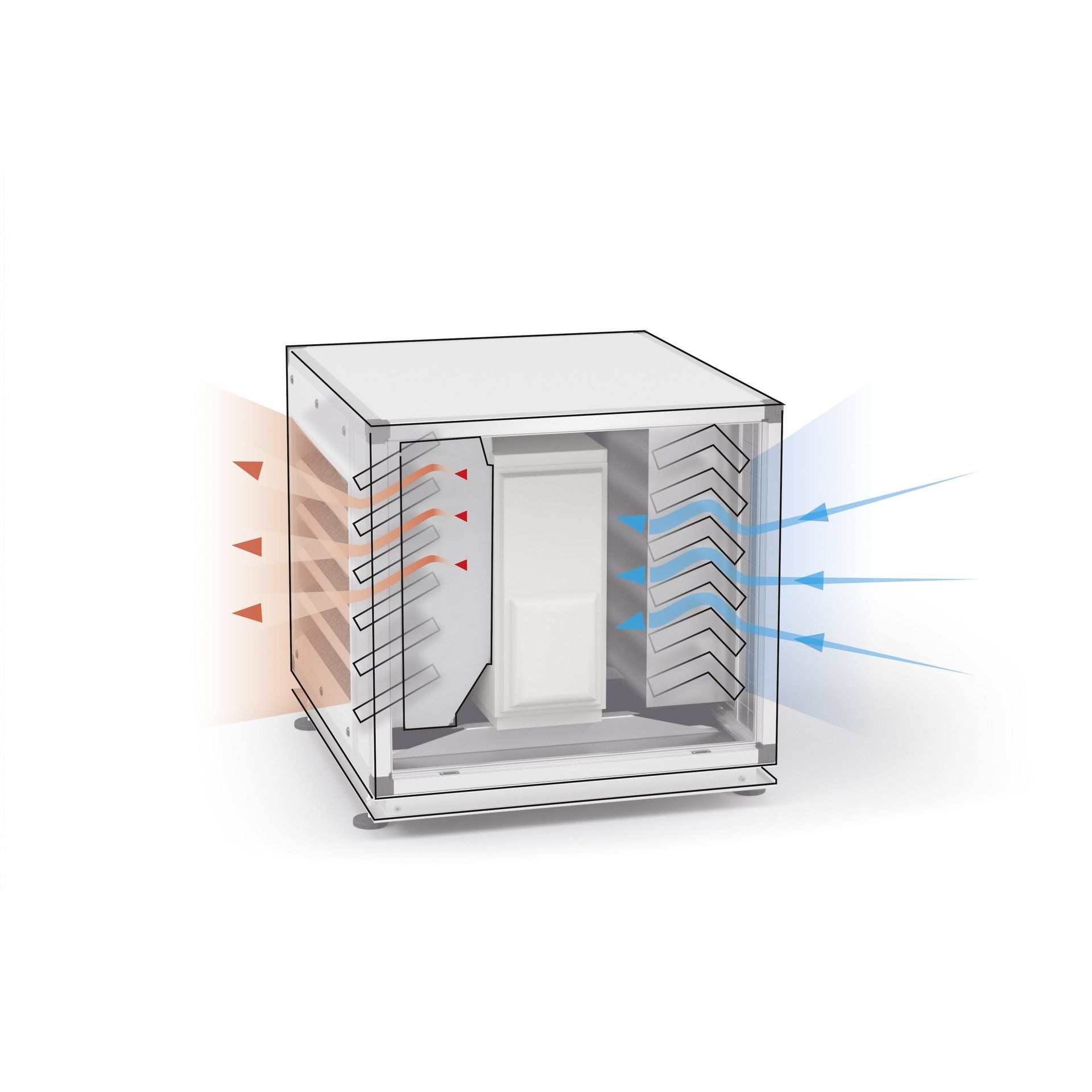

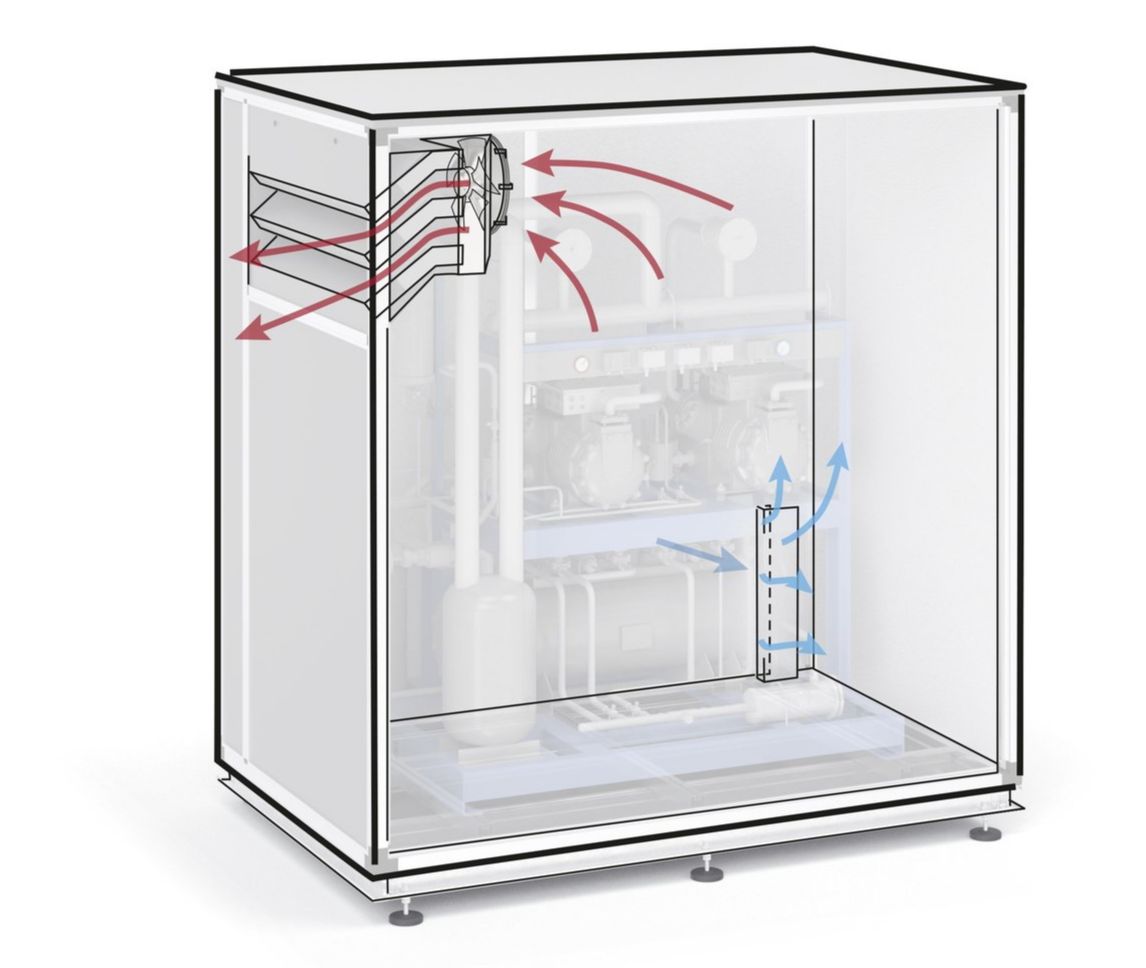

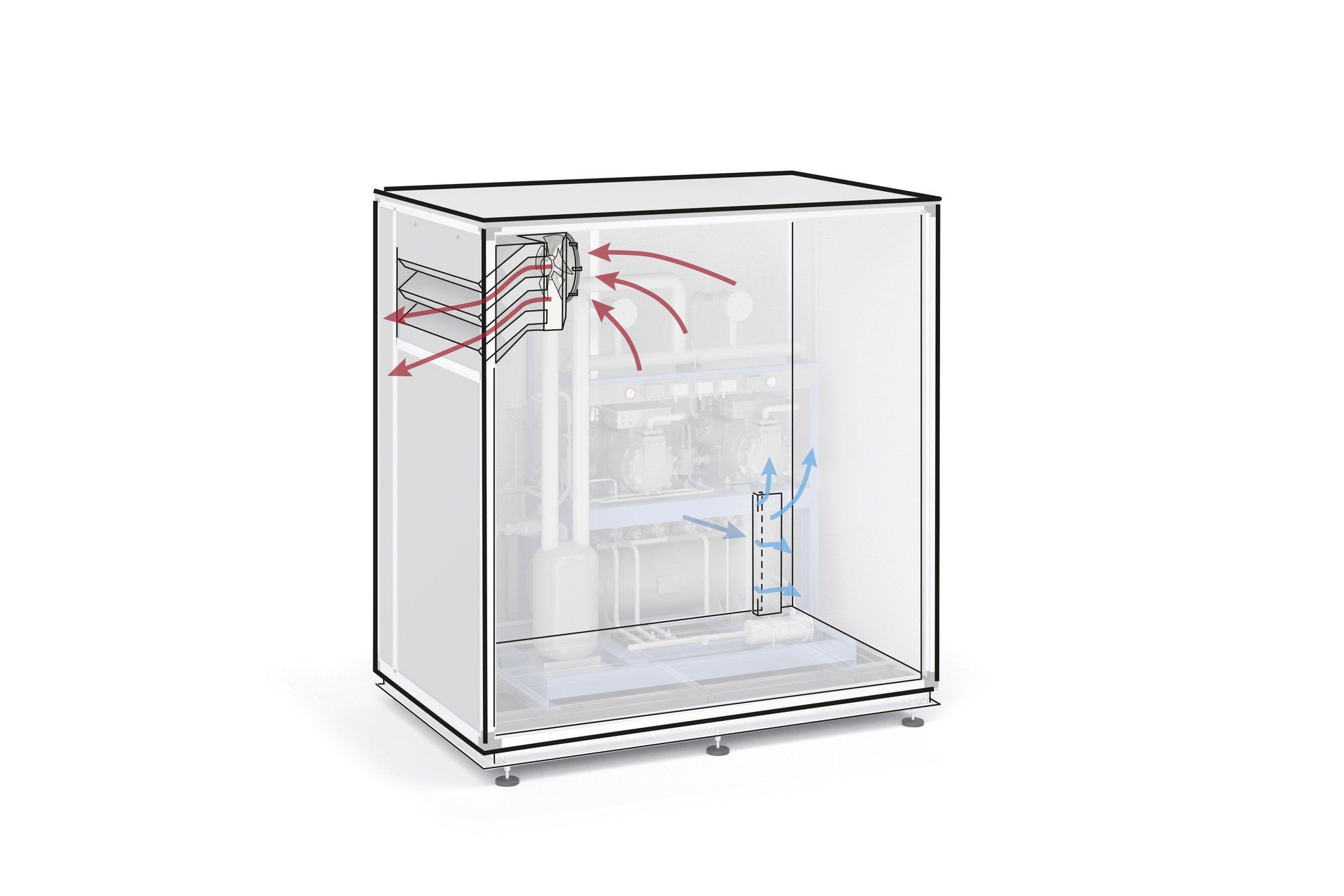

Soundproof enclosure in closed design
for the heat dissipation of the compressor waste heat with a very
quietly running support fan with automatically controlled air volume
from 0 to 2000 m³/h, including temperature control via thermostat
(0-10V) depending on the interior temperature. Intake on the rear side
of the housing via labyrinth system and air-discharge via soundabsorbing
special lamella-pack for an optimum cross-flow via the built-in refrigeration system.
Reinforced base frame construction
with solid steel girder profiles with closed bottom and insulated
bottom made of thick sheet steel with heavy rubber mat.

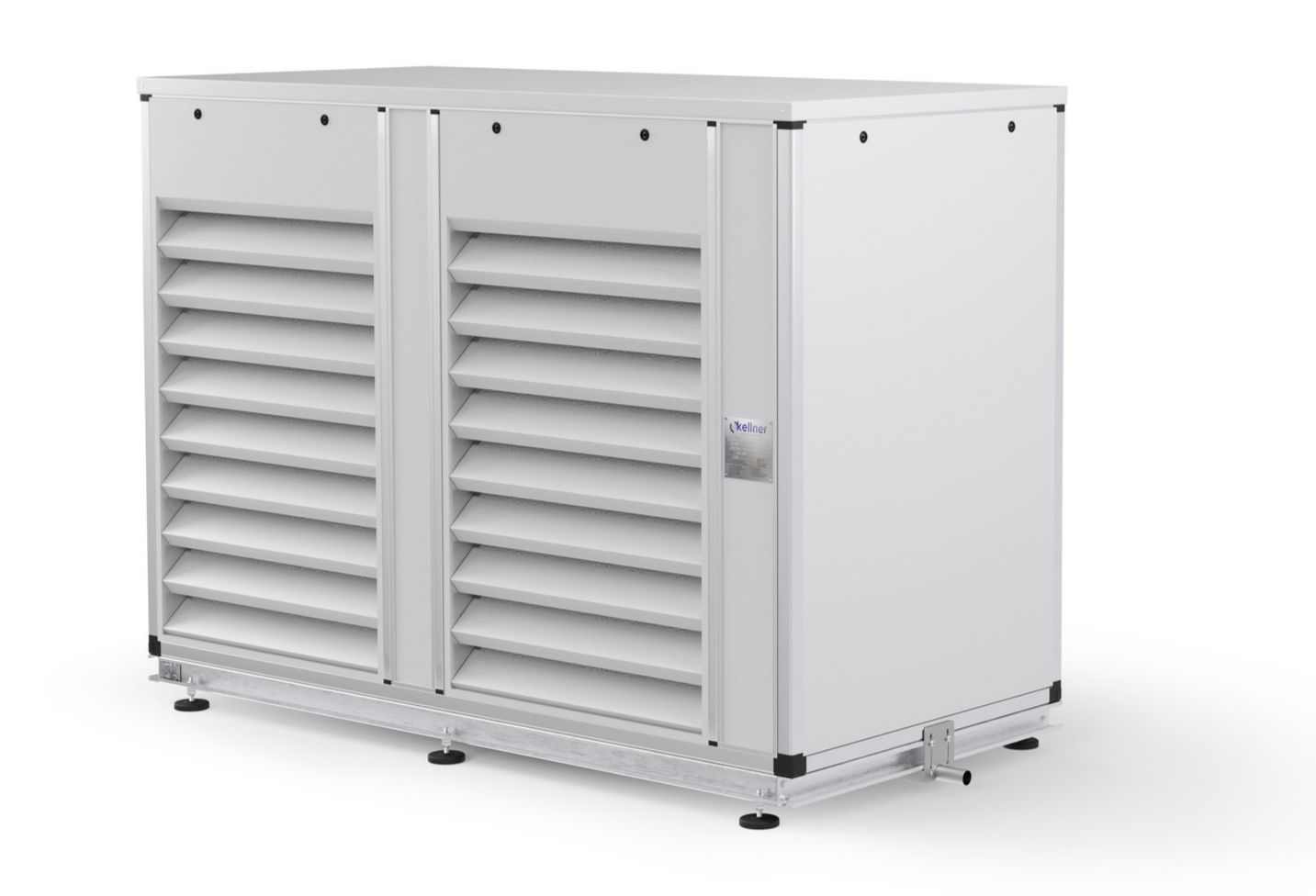

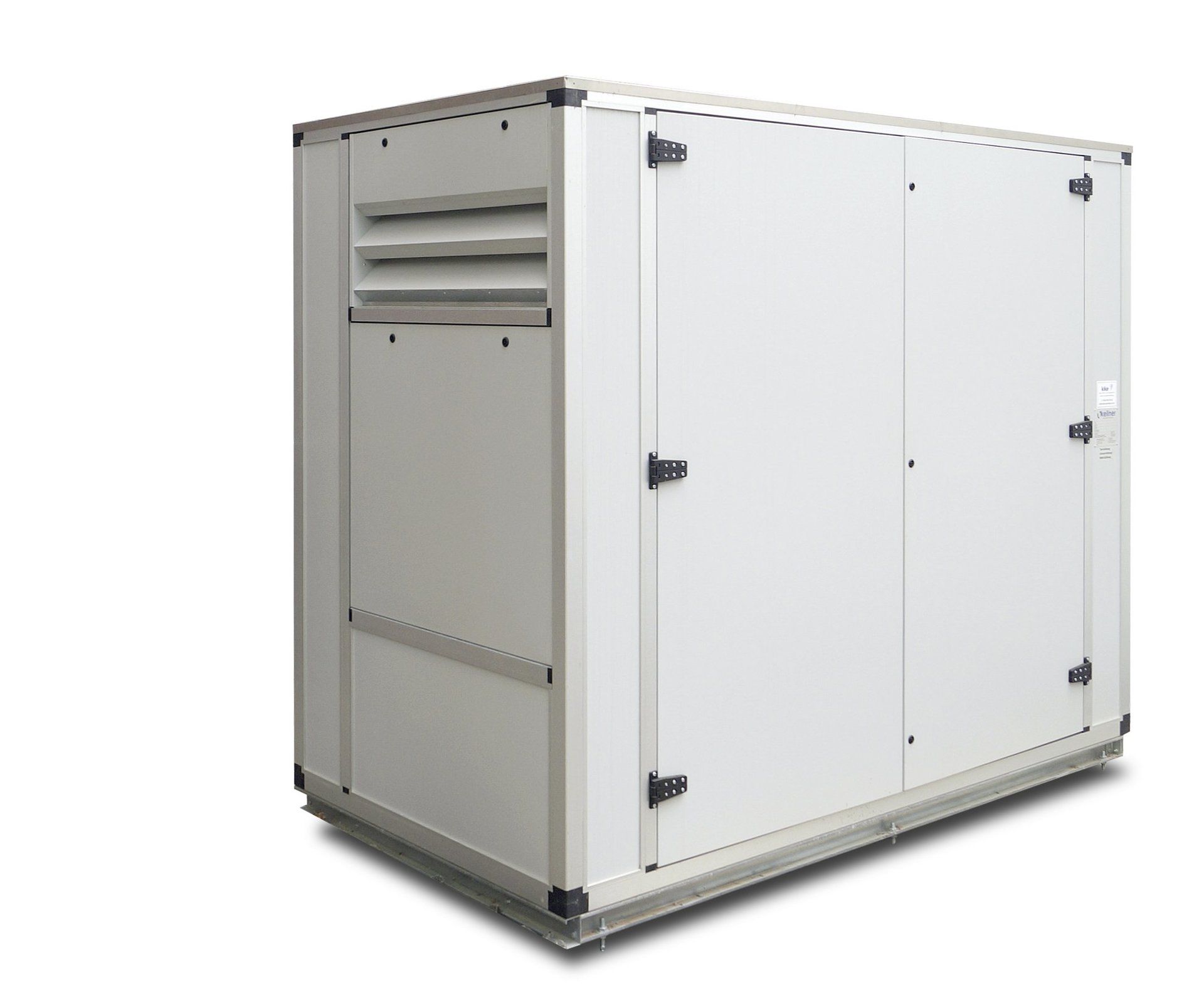

Special housing versions
for various outdoor units and applications

Acoustic housing for chiller

Acoustic housing for refrigeration condensing units

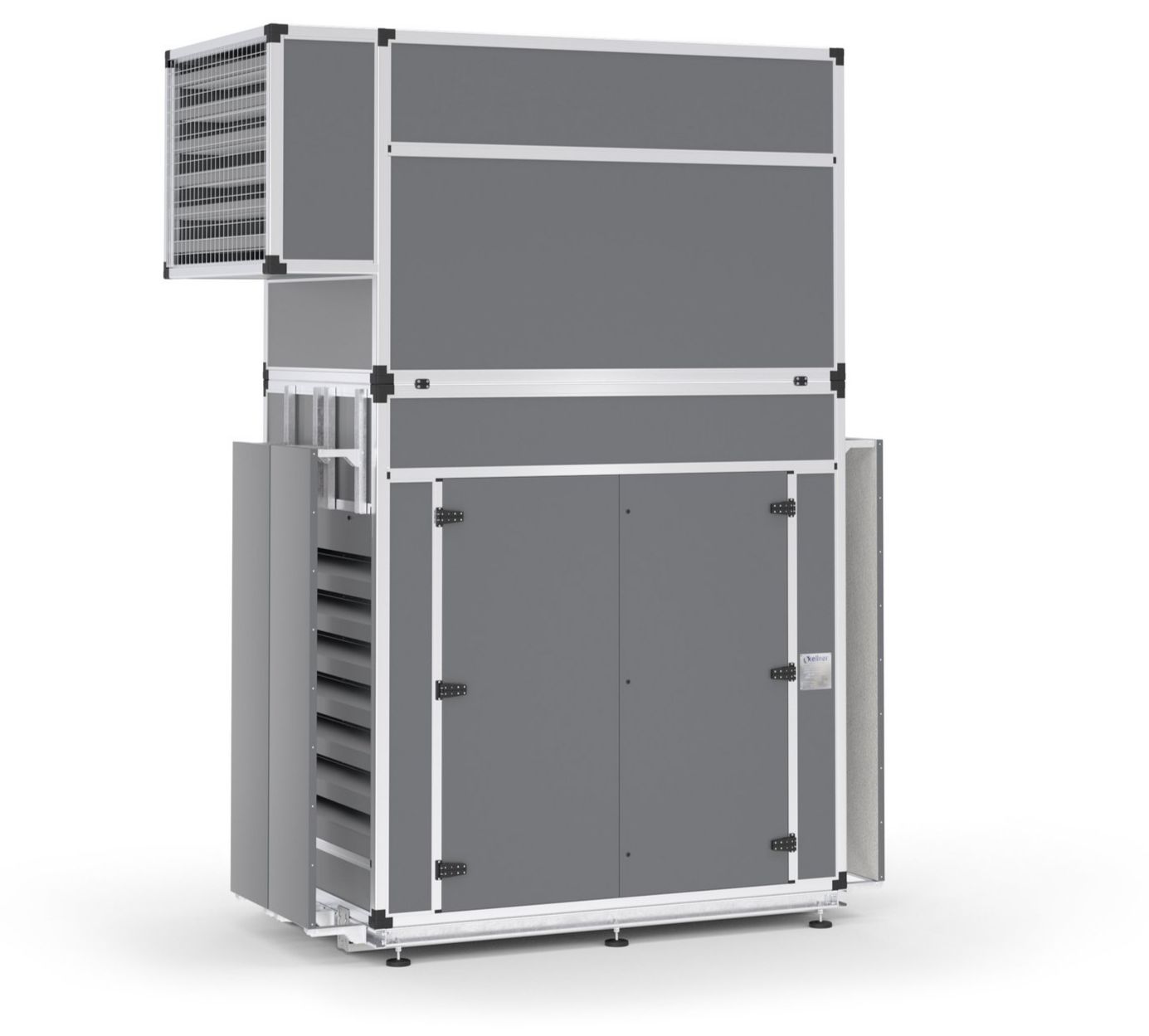

Redirection housing

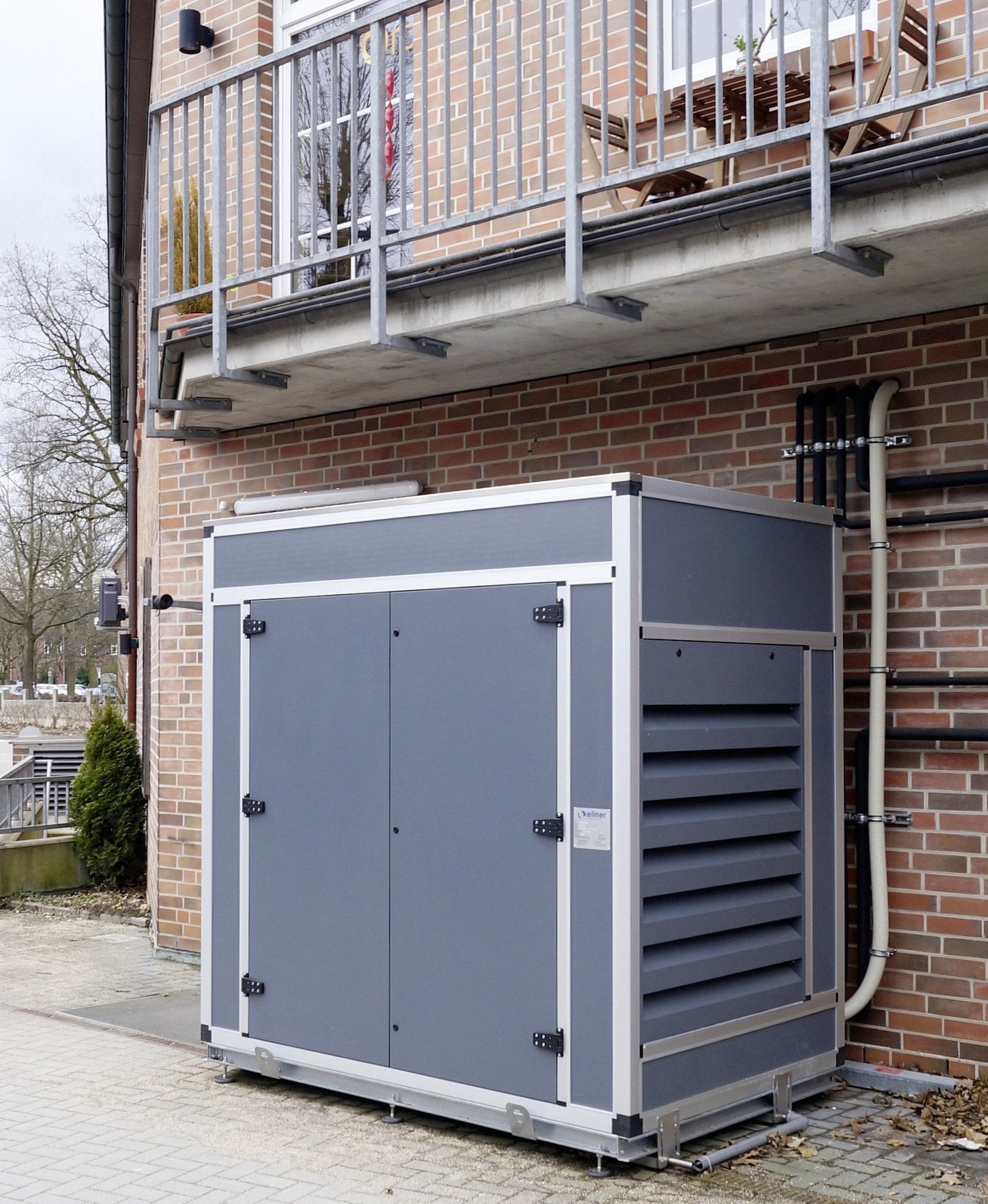

for deflecting the exhaust air (blowing vertically) in horizontal direction with additional special sound insulation. For projects with highest demands on the sound insulation in the vertical direction, e.g. if there are balconies above the housing while avoiding of additional sound components in a horizontal axis. The redirection housing is available in different versions, with air discharge on the side or above the front doors and can also be mounted on existing acoustic housings as retrofit.
Ultra louvre-packs (not pictured)
enable a higher sound attenuation by approx. -5 dB(A) in addition. These special multi-louvre packages with longer silencers can beinstalled in the KV-housing types, especially on the discharge fan side. Depending on the built-in outdoor unit, the next larger housing type is required.
